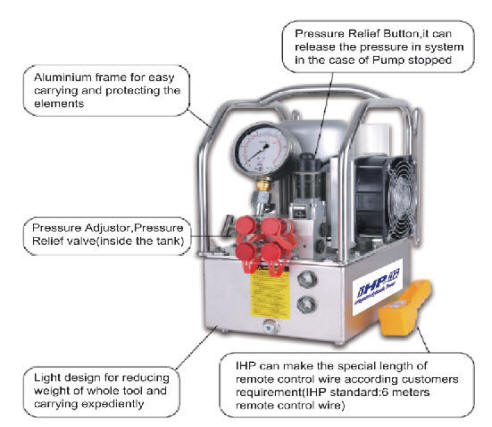

Electric Torque Wrench Pump 　 　
　 　 　 　 　
　 ● Easily adjustable pressure control valve. 　 　
● 700 bar(10,000psi) pumps are engineered for maximum 　
　    performance when used with IHP Torque Wrench Systems.
　 ● Glycerin-filled gauges are standard on pumps. 　 　
　 ● Remote pendant allows the operator to control the pump
　    and torque wrench functions where the work is being performed.

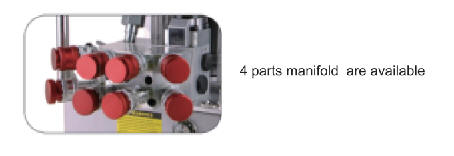

　 ● Option for 4 parts manifold to operate 4 torque wrench
　     simultaneously. 　 　 　
　 ● Fitted with safety lock-ring coupler. 　 　 　
　 ● Standard inter-cooler on all pumps. 　 　 　
　 ● Internal safety valve. 　 　 　 　
　 　 　 　 　 　 　 　
　 　 　
　 　 　
　 　 　
　 　 　
　 　 　
　 　 　
　 　 　
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
　 Model Number Motor Size (Hp) Motor Voltage (Vac) Usable Oil Capacity (Liter) Pressure Rating Output Flow Rate Dimensions  Weight
　 1st Stage 2nd Stage 3rd Stage 1st Stage 2nd Stage 3rd Stage L W H
　 　 (Bar) 　 　 (L/min) 　 (mm) (mm) (mm) (kg)
　 IH-1500 1.5 220V 8.0 0-40 40-260 260-7000 7.0 1.6 0.8 300 375 458 26.7
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
　  Pneumatic Torque Wrench Pump 　 　
　 　 　 　
　 ● Use where air(4-8bar) is the preferred source of energy. 　 　
　 ● Compact automatic three stage flow, can start in high pressure. 　 　
　 ● Quite operation 【less than 70 dBA】 　 　 　 　
　 ● Option for 4 parts manifold to operate 4 torque wrench simultaneously. 　
　 ● With the high efficiency cooling system makes the pump suitable
　     in extreme environment. 　 　
　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　
　 　 　 　 　 　 　 　 　 　 　 　 　 　 　
　 Model  Motor Size (Hp) Air Pressure Range Usable Oil Capacity (Liter) Pressure Rating Output Flow Rate Dimensions  Weight
　 1st Stage 2nd Stage 3rd Stage 1st Stage 2nd Stage 3rd Stage L W H
　 　 (Bar) 　 　 (L/min) 　 (mm) (mm) (mm) (kg)
　 IH-1500N 1.5 4-8 Bar 8.0 0-40 40-260 260-7000 7.0 1.6 0.8 281 428 448 20.5
