 Hydraulic Flange Spreaders

*For maintenance, commissioning, shutdowns, testing and valve change outs.

*Unique interlocking wedge design - no first step bending and risk of slipping out of joint.

*Stepped spreader arm design - each step can spread under full load.

*Few moving parts mean durability and low maintenance

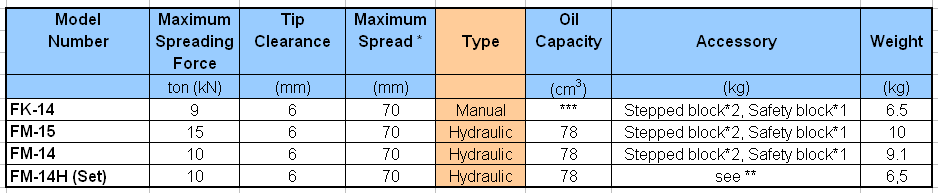

*FM-14H include FM-14*2, Stepped block*4, Safety block*2, Hand Pump*1, Hose with coupler*2, Manifold*1, Valve*1 and Storage Case*1

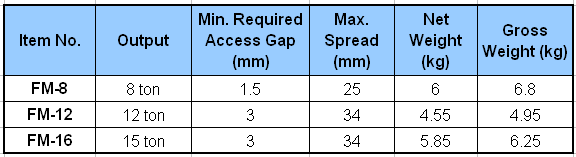

 FM-8  : Self-contained design，no need for extra hand pump, hose and coupling.

 FM-12:  No need safety blocks or step blocks.  Separate type--needs to operate with hand pump.

 FM-16:  No need safety blocks or step blocks. Self-contained design，no need for extra hand pump, hose and coupling.
